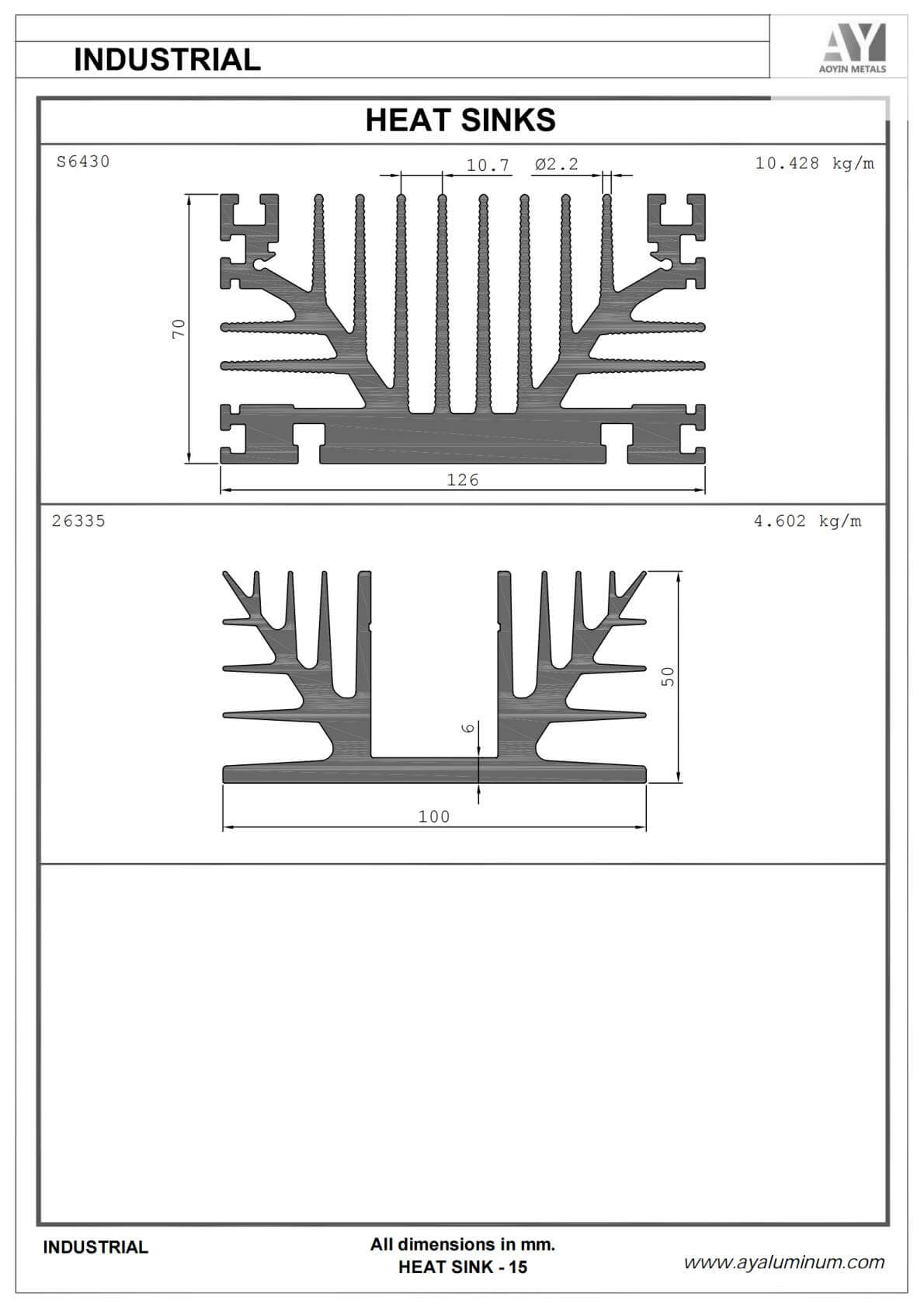

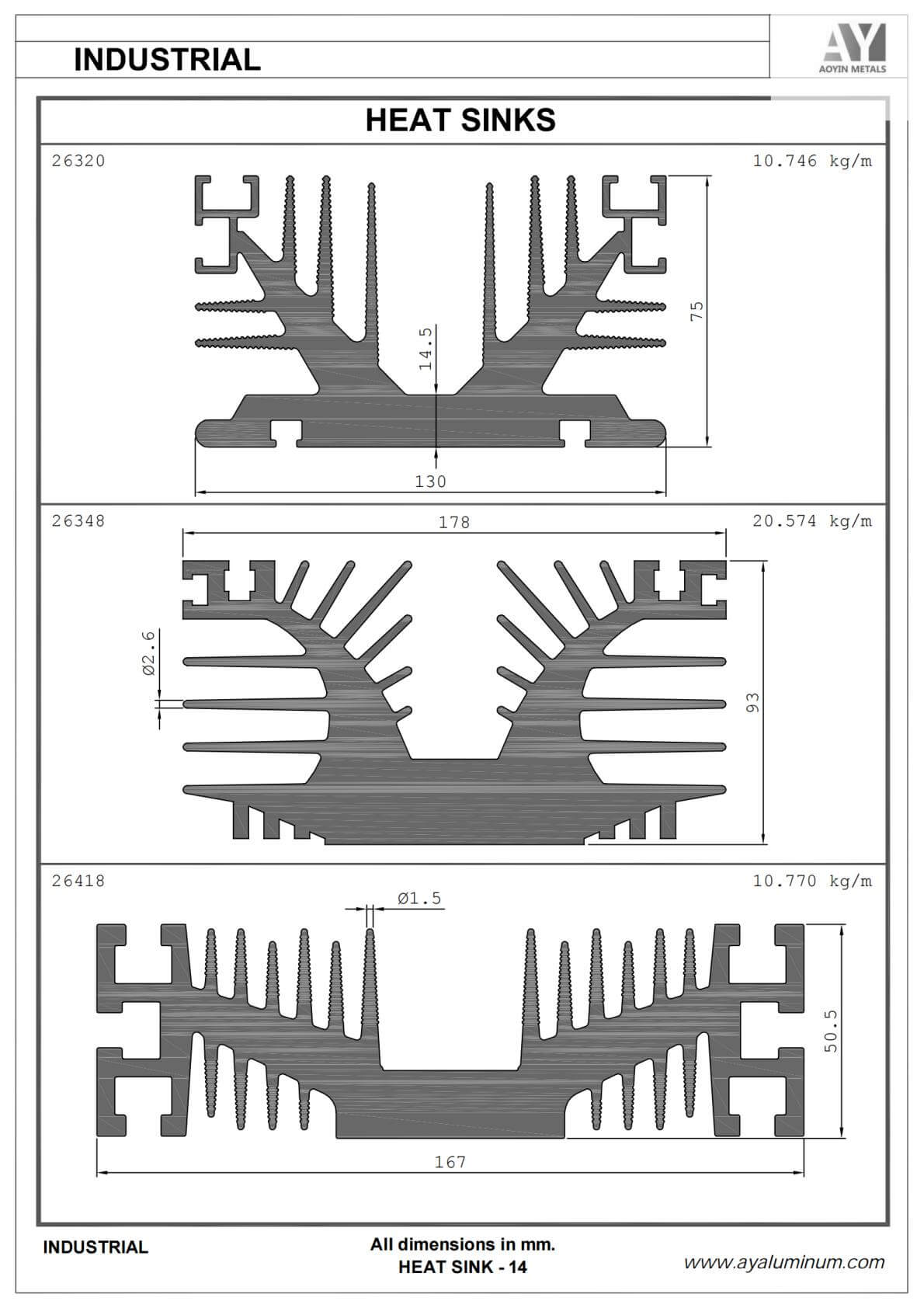

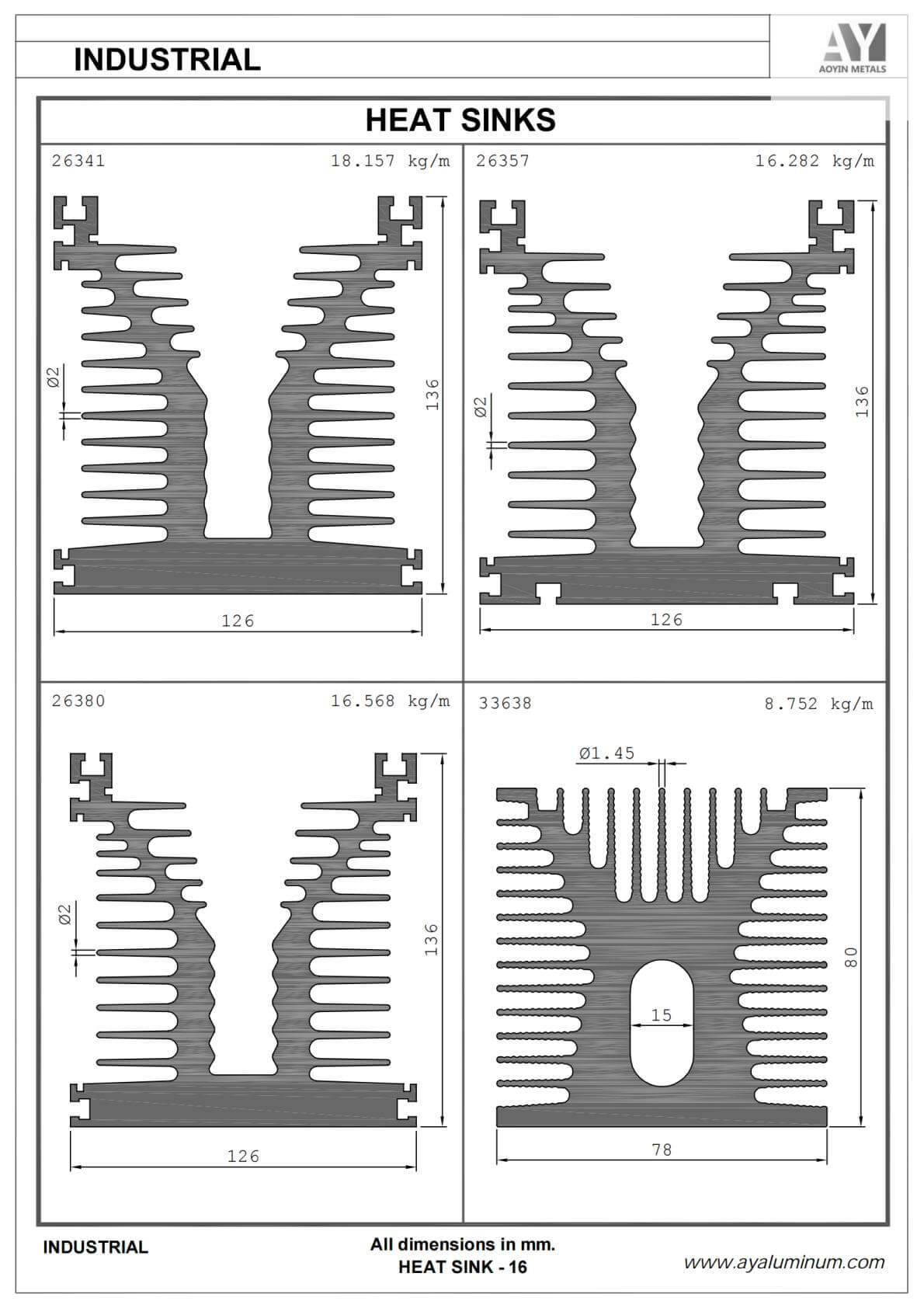

These technical drawings showcase high-performance industrial heat sinks from Aoyin Metals, designed for efficient thermal management in electronics, power systems, and heavy machinery. Each model features precision-engineered aluminum fins to maximize heat dissipation, with detailed dimensions and weights provided for easy integration.
All models use 6063-T5/T6 aluminum (anodized for corrosion resistance).
aluminum heat sinks with varying dimensions and weights. Below is a structured summary
| Model | Weight (kg/m) | Dimensions (L × W × H, mm) | Key Features | Typical Applications |
|---|---|---|---|---|
| 26321 | 0.552 | N/A × N/A × 26 (Base H) | Standard extrusion | LED lighting, small electronics |
| 26401 | 0.830 | 25 × 37 × 2 (Base W×L×H) | Wide base, medium fins | Power supplies, telecom devices |
| 26387 | 0.177 | 1100 × N/A × 15 (Long profile) | Ultra-thin, lightweight | Compact IoT, wearables |
| 26398 | 0.256 | 15.35 × 23 × N/A | Small footprint | Automotive sensors |
| 26417 | 0.259 | 12 × 16 × N/A | Low-profile | Medical equipment |
| 26420 | 0.788 | 15 × 3.3 × 1.3 (Fin H×W×L) | High-density fins (N=35.1) | Server modules, GPUs |
| 26450 | 0.692 | 25 × 2 × 4.5 | Thick base, narrow fins | Industrial control systems |
| 26489 | 0.322 | Ø16.25 × N/A × 1 (Round) | Cylindrical base | RF amplifiers, antennas |
| 33662 | 0.361 | 25 × N/A × N/A | General-purpose | Consumer electronics |
| 33587 | 0.279 | 16.5 × N/A × N/A | Compact | PCB cooling |
| 33619 | 0.580 | 30 × N/A × N/A | Heavy-duty | Solar inverters, motor drives |
| 33608 | 0.413 | 27.65 × N/A × N/A | Balanced performance | Robotics, power converters |
